WELDING



Yardarm® Fabrication employs highly skilled welders who are certified experts of their craft. You can trust your project will be in good hands.

TYPES: MIG, TIG, Spot, Stud, Oxy Acetylene
MATERIALS: Mild steel, Stainless steel, Aluminum

MACHINES

MILLER DELTAWELD 350 ELITE (MIG)
Features: Intellx Elite Feeder
Processes: High-Deposition MIG, Versa-Pulse, Accu-Pulse, RMD
Materials: Aluminum, Mild Steel, Stainless Steel
MILLER DYNASTY 210 (TIG)
Features: Quiet Pulse, Blue Lightning, Lift-Arc
Processes: AC/DC TIG
Materials: Aluminum, Mild Steel, Stainless Steel
PEER RESISTANCE SPOT WELDER AR-430
Specs: 30 KVA with Microcontroller 105
Throat Depth: 18"
Materials: Aluminum, Mild Steel, Stainless Steel
EAGLE STUD WELDER
EAGLE STUD WELDER
Pin/Stud Range: 14 GA. thru 1/4" Dia. Weld Base
Weldable Materials: Mild steel, Stainless steel
Stud Range: 14 Ga. through 1/4" Dia.
Faster Length: 1/4 - unlimited

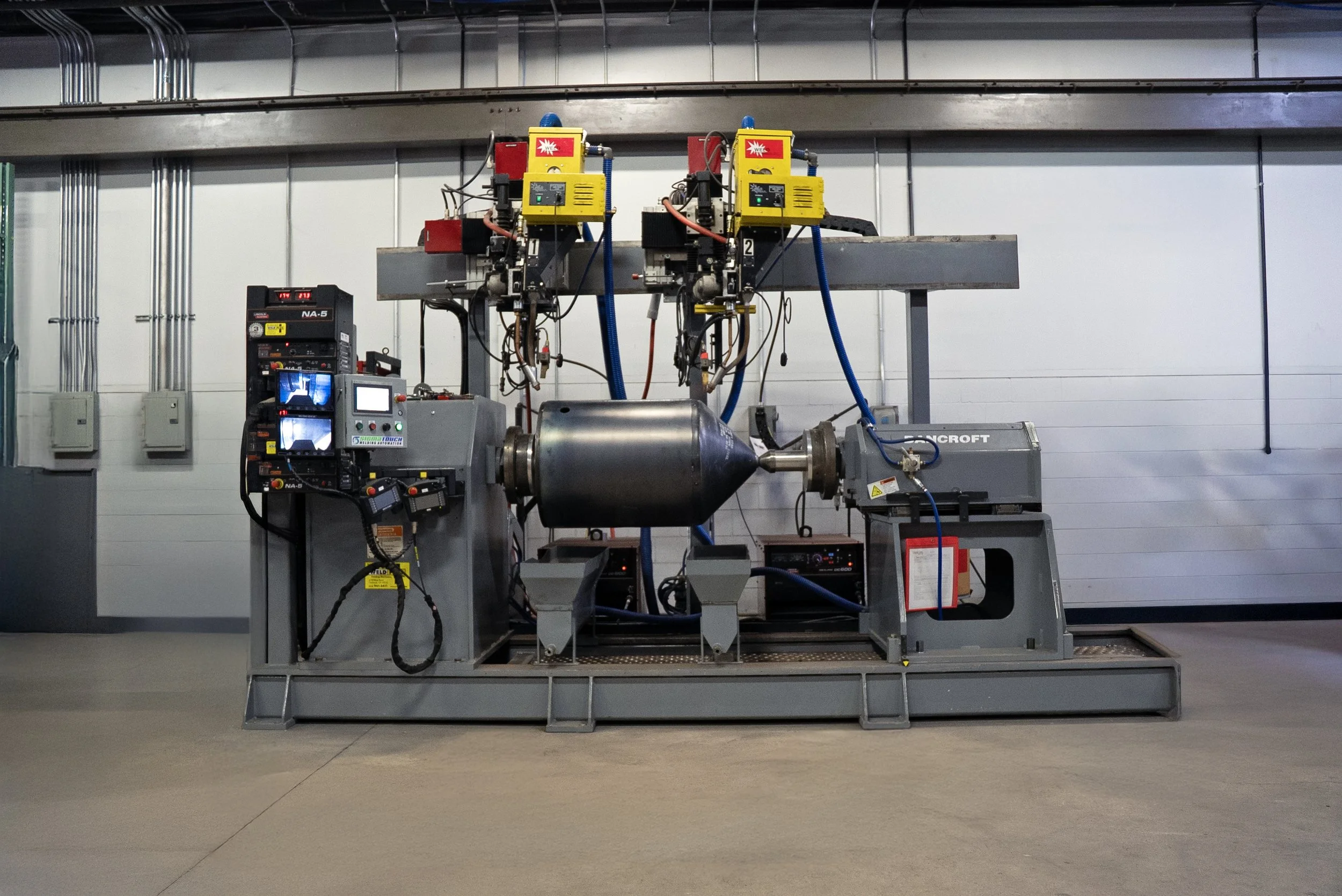

BANCROFT DUAL TORCH WELDING LATHE (SUB ARC)
Servo-Robot Laser Seam Tracking
Part Capacity: Max Diameter: 36", Max Length: 72", Max Weight: 1,000lbs
Integrated: Lincoln Submerged-Arc Welder

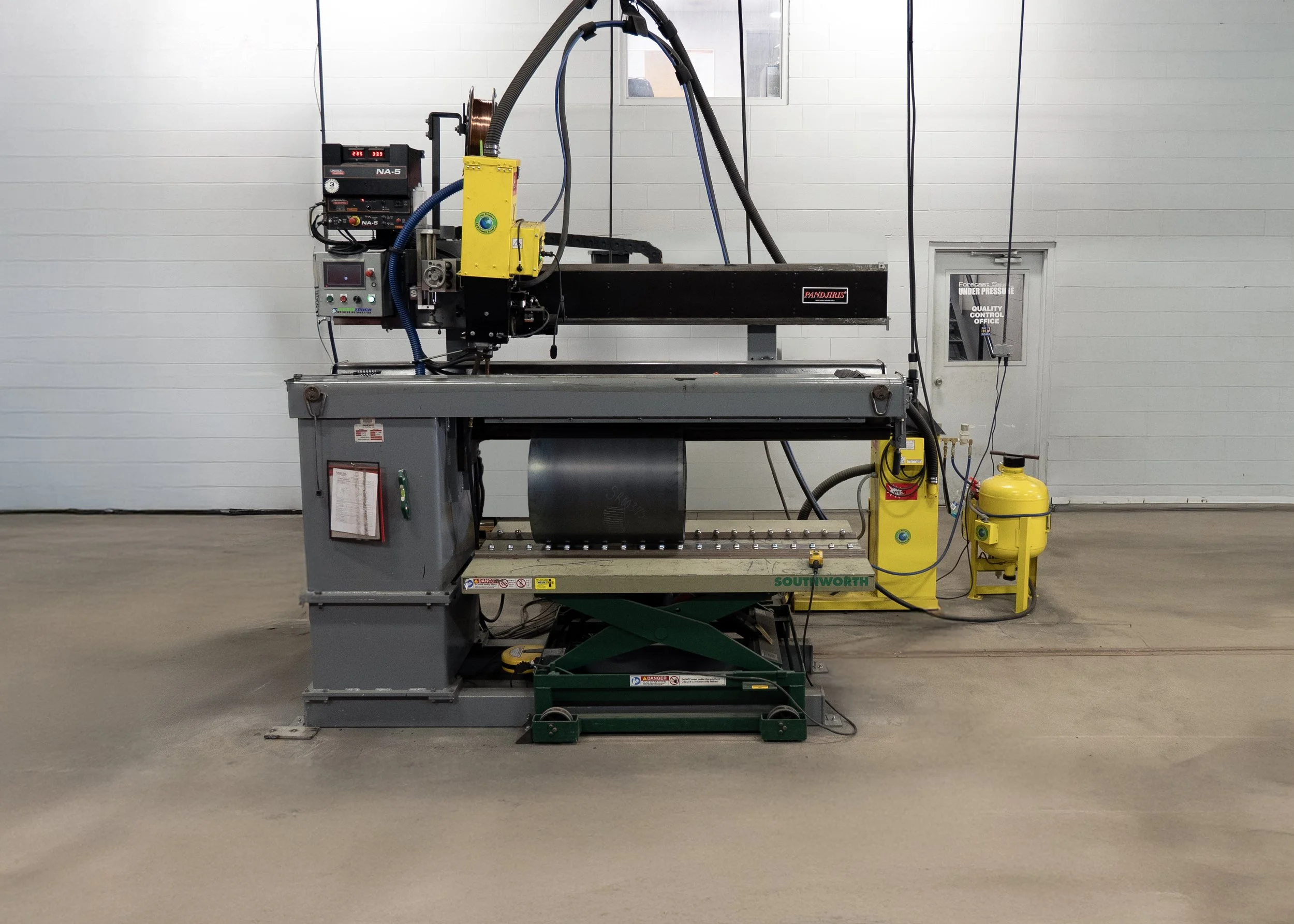

PANDJIRIS 60" LONGITUDINAL SEAMER (SUB ARC)
Part Capacity: Max Length: 60", Max Diameter: 36"
Integrated: Lincoln Submerged-Arc Welder
BANCROFT CIRCLE WELDER (MIG)
Miller MIG Current
Max Diameter: 24"
Max Height: 18"
PANJIRIS MINI PIPER TURNING ROLL
PANJIRIS MINI PIPER TURNING ROLL
Weight Capacity: 750 lbs.
Turning Capacity: 1,500 lbs.
Diameter Capacity: 2" to 16"
PANJIRIS WELD 15-4AB POSITIONER
PANJIRIS WELD POSITIONER 15-4AB
Load Capacity: 1,500 lbs. at 4" center of gravity
Swing Radius: 20" @ 90° tilt
Tilt Range: 0° through 135°, hand crank
PANDJIRIS PIPER 3 TURNING ROLLS
Turning Capacity: 4,000 lbs
Diameter Range: 35" to 40"

PANJIRIS WELD POSITIONER 30-6AB
Load Capacity: 3,000 lbs. at 6" center of gravity
Swing Radius: 28" @ 90° tilt
Tilt Range: 0° through 135°

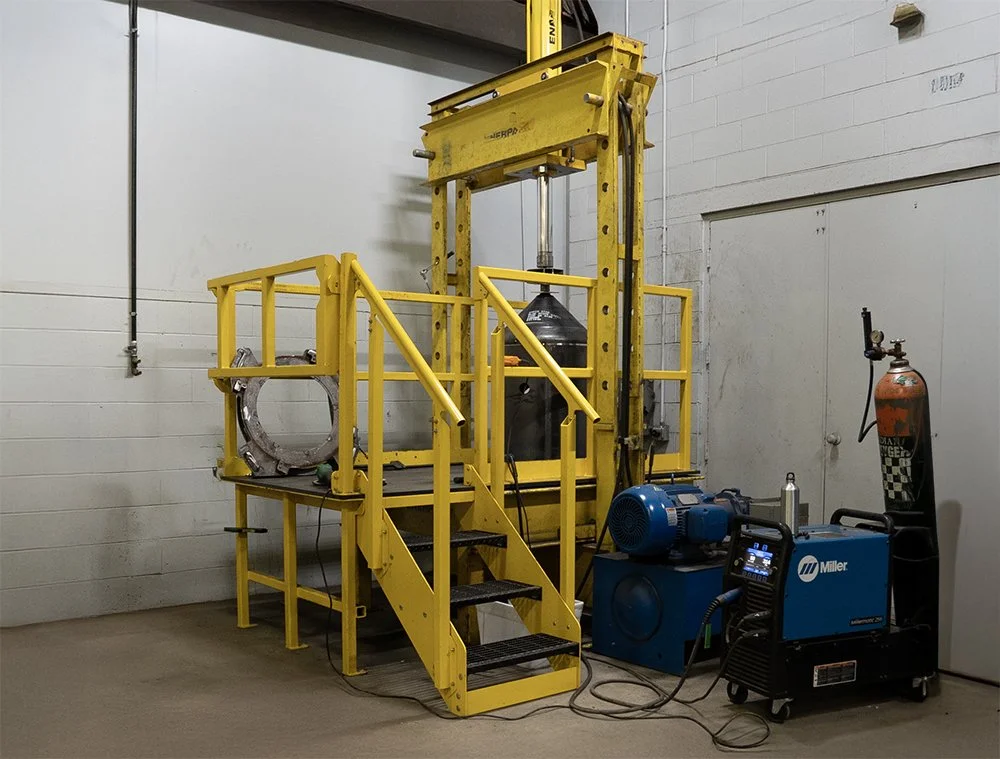

ENERPAC HEAD PRESS
Type: Traveling H-Frame
Stroke: 60"



MIG welding at a fabrication table inside our Indianapolis facility.

MIG Welding a large custom rack.

Custom-fabricated MIG Welded metal parts ready for powder coating.

MIG Welded Assembly Table - Blasted

Accuracy and efficiency in seam welding details from the Pandjiris 60” Longitudinal Seamer (Sub Arc).

MIG welding on a cylindrical metal assembly mounted to our rotating weld positioner.

MIG Welded pontoon dollies.

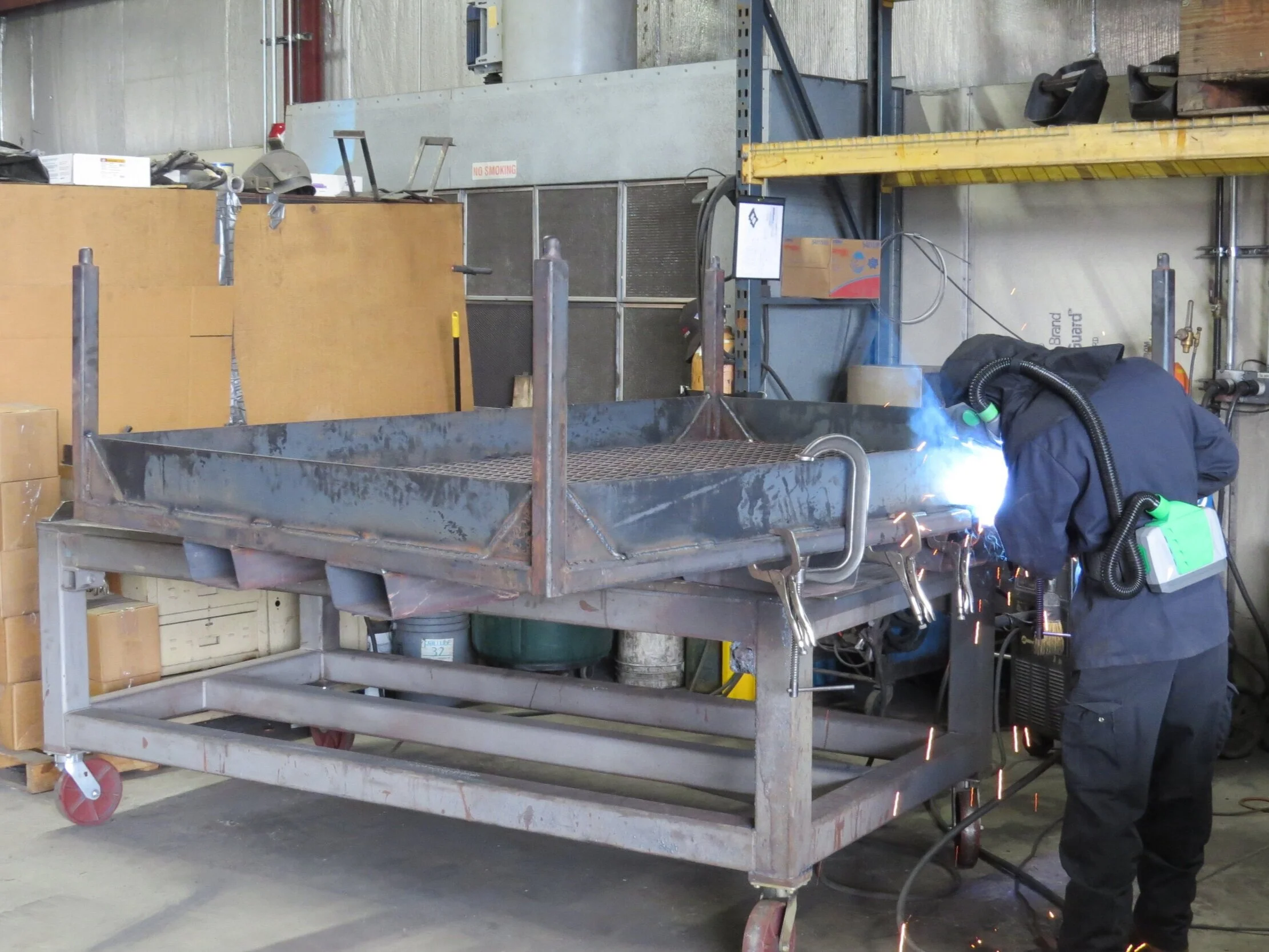

MIG welding on a metal frame.

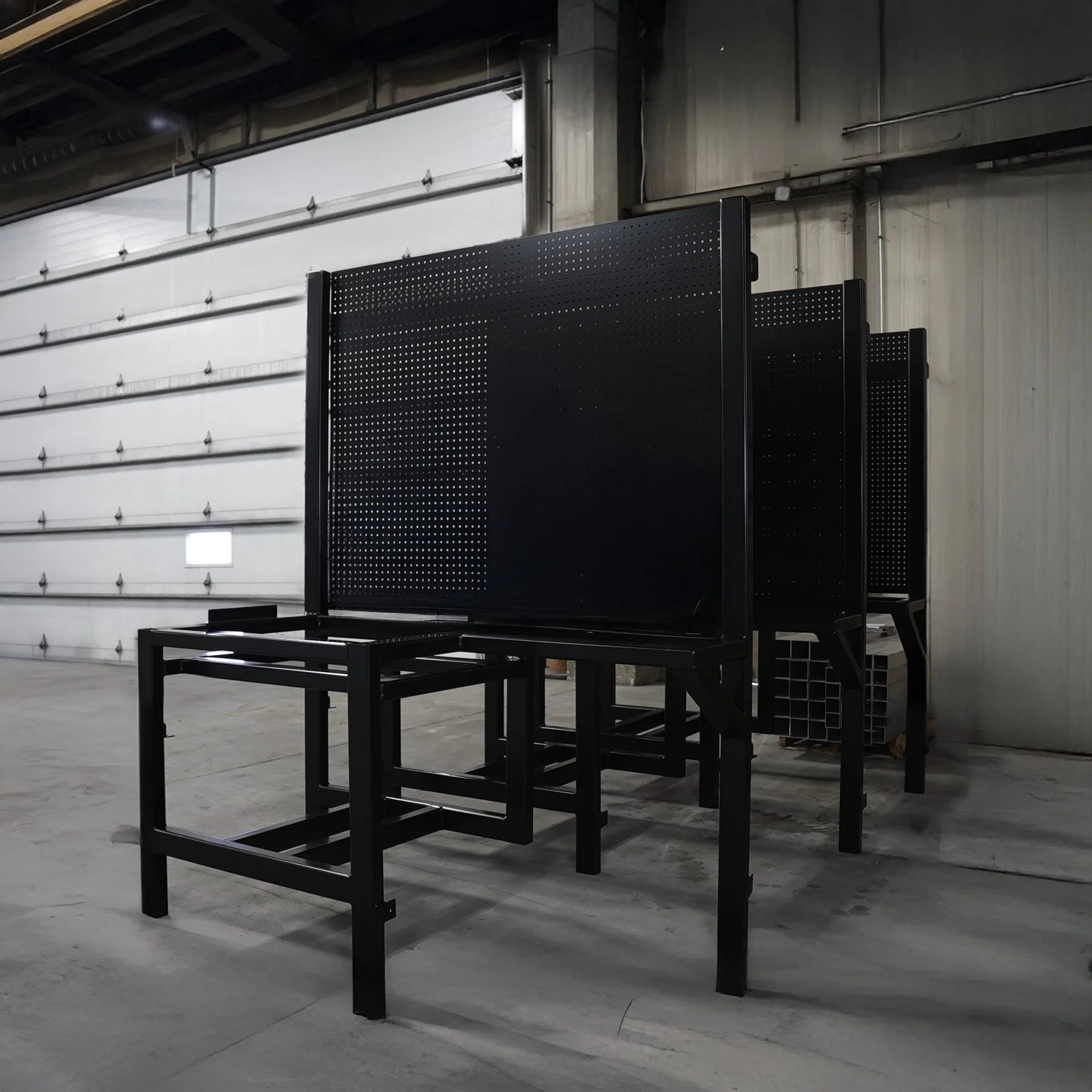

MIG Welded Assembly Table - Powder Coated

Powder-coated welded shelving frame in black. Includes 5” swivel caster wheels with brakes.

A certified welder performing MIG welding to join two heavy-duty steel components.

TIG welding in our shop to fabricate a custom aluminum skid.

Custom reusable shipping skid created using our aluminum cutting and TIG welding services.

MIG Welded sheet metal assembly, showing spot welds, reinforcing bars, and cutouts.

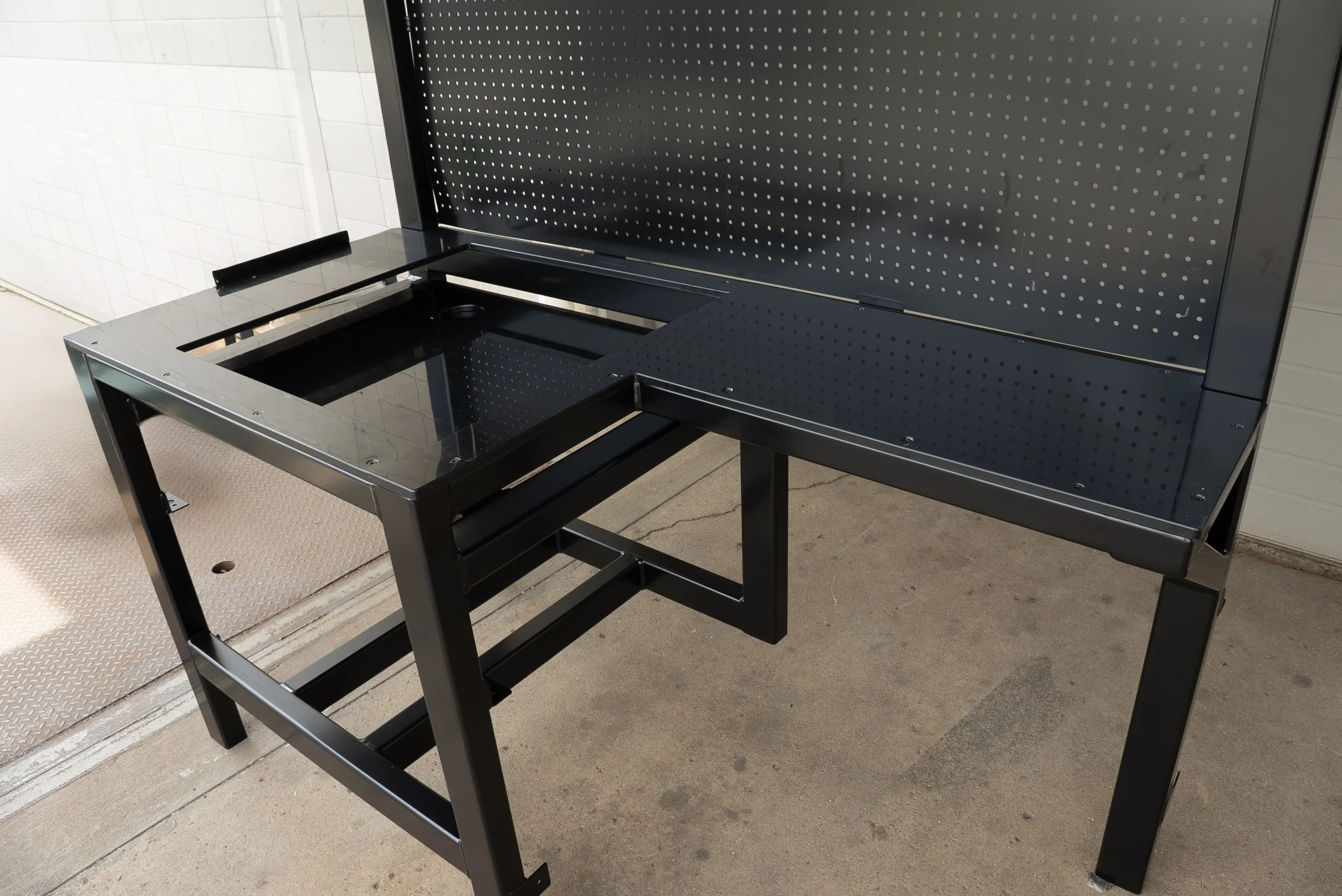

Black MIG-welded assembly table with powder-coated finish and optional countertop installed, shown in a workshop with perforated back panel.

MIG Welded Assembly Table With Optional HDPE Counter Top Installed

MIG welding on an architectural structural beam.

MIG Welding large metal assembly table mounted on caster wheels.

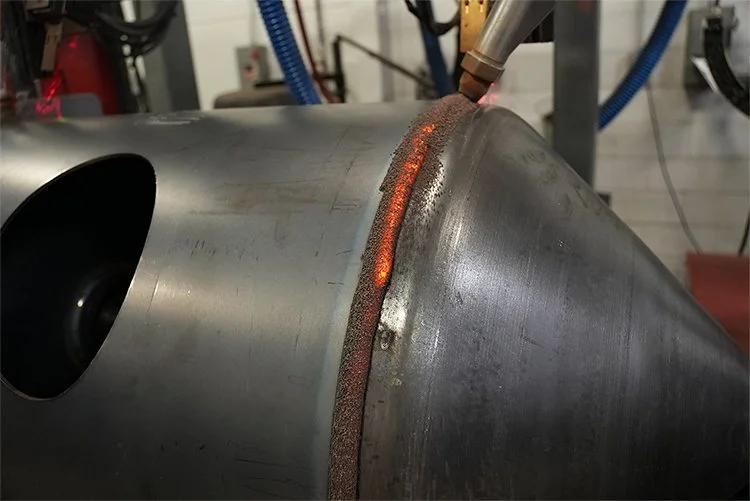

Glowing hot Submerged-Arc welds on the Bancroft Dual Torch Welding Lathe.
